Select Variation
From $324.68
Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer—
$324.68
The Story

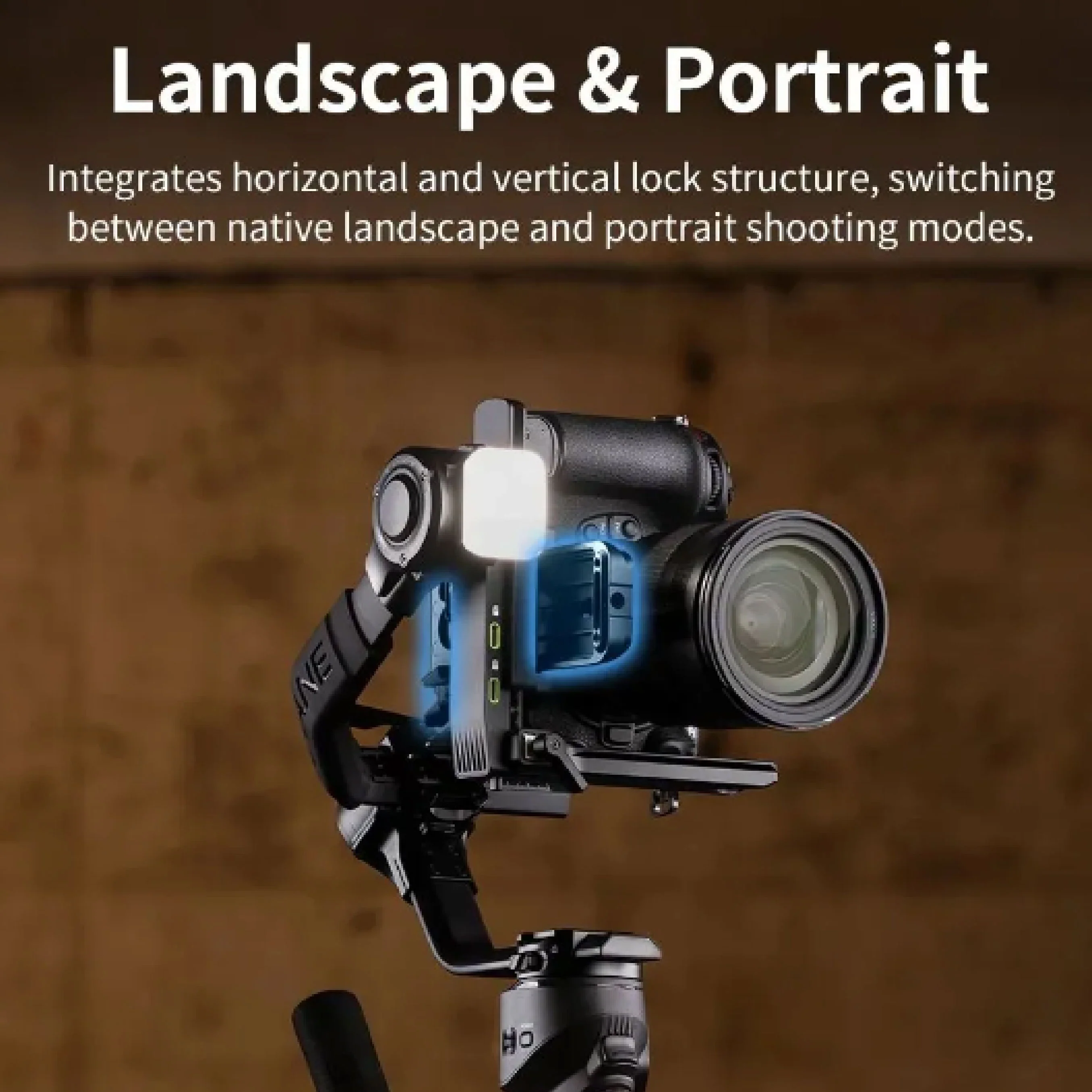

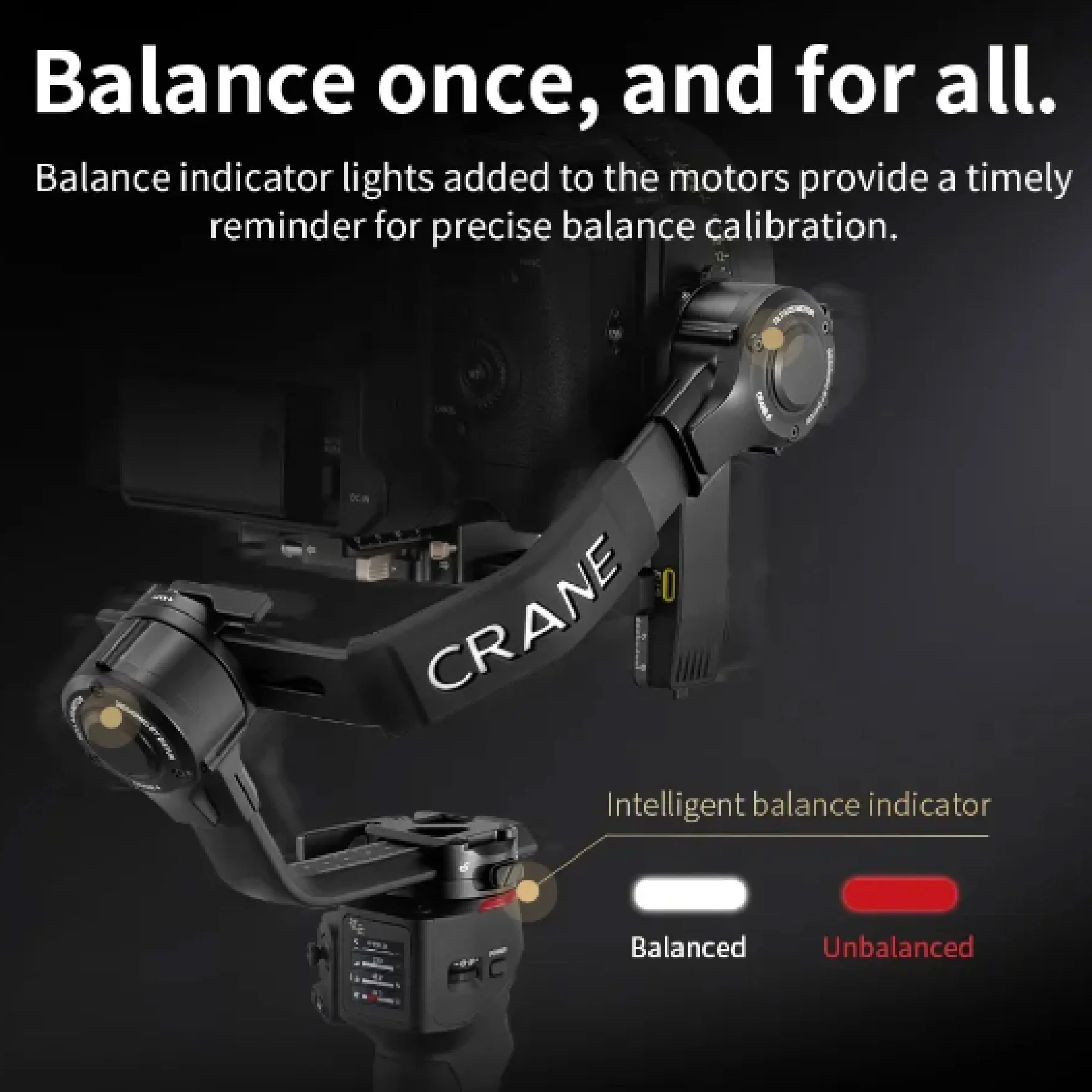

The Zhiyun CRANE 4 takes the familiar form factor and lightweight experience of previous Zhiyun gimbals while expanding the onboard features for native portrait shooting, Bluetooth shutter control, and an extended grip to accommodate cameras with full-frame lenses. Control the 360° pan, 207° tilt, and 70° roll rotation using the onboard controls. Balance indicator lights on each motor aid in achieving precise calibration. Dual-layer quick release plates facilitate both landscape and portrait-oriented shooting with ease. Easily control your settings with the 1.22" color touchscreen and Bluetooth-powered wireless shutter. The CRANE 4 also features a built-in fill light with a 3200 lux output and adjustable color temperature.
In the Box:
- Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit
- Mini Tripod
- Lower Quick Release Plate
- Upper Quick Release Plate
- Camera Quick Release Plate
- Lens Support with Screw
- Sling Grip
- Wrist Rest
- USB-C to Sony Multi Control Cable
- USB-C to Mini-USB Canon Control Cable
- USB-C to Micro-USB Canon Control Cable
- USB-C to USB-C Panasonic Control Cable
- USB-C Charging Cable
- Fill Light Diffuser
- 3 x 1/4"-20 Screw
- 3/8"-16 Screw
- Allen Key
- Carrying Case
Key Features:
- 13.2 lb Load Capacity

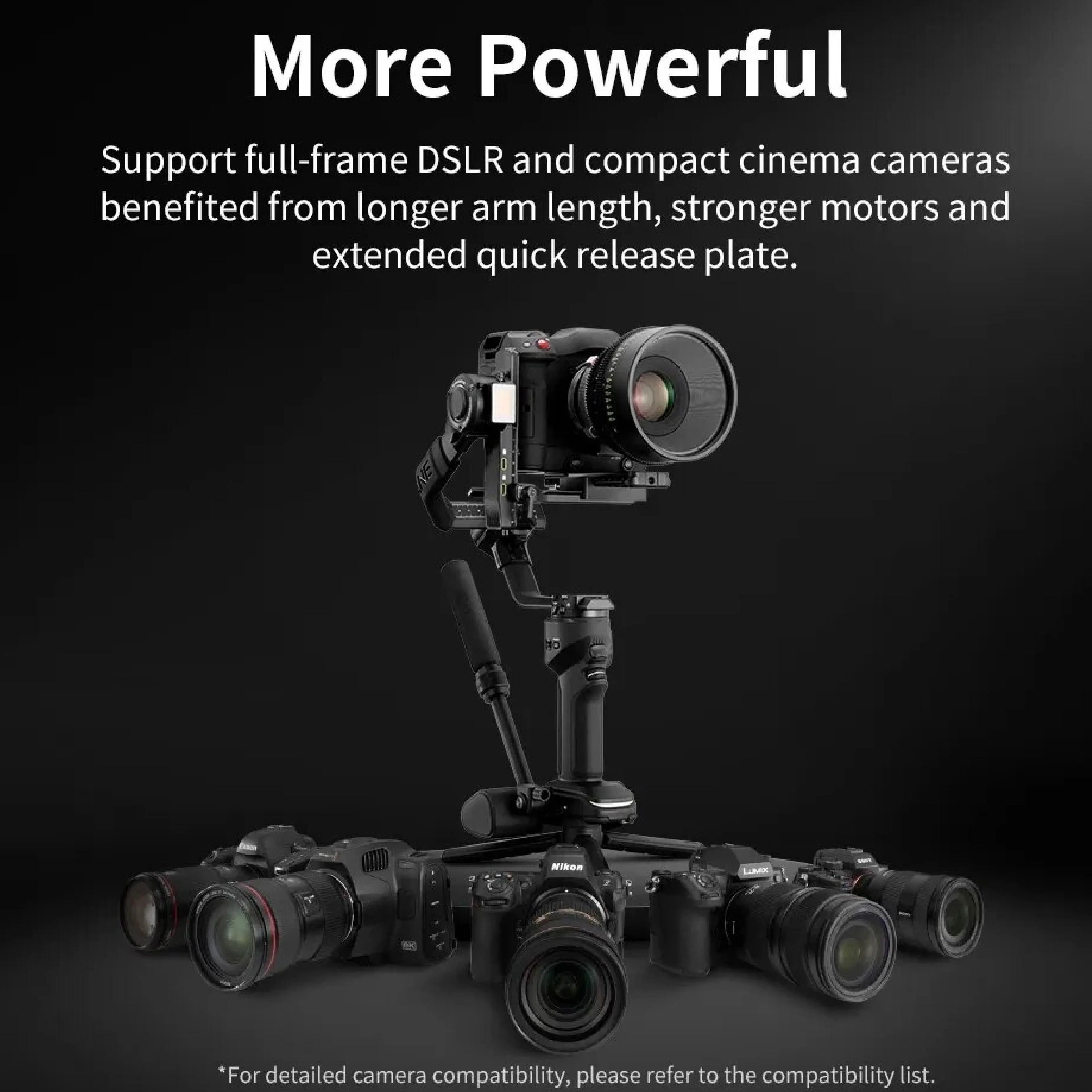

- Extended Arm for Full-Frame Lenses
- Dual-Layer Quick Release Plates
- 360° Pan, 207° Tilt, 70° Roll Rotation
- Bluetooth 5.0 Shutter Control
- Built-In 3200 Lux Fill Light
- Adjustable Color Temperature
- Creative Operation Modes, 12-Hr Runtime
- 1.22" Touchscreen, Balance Indicators
- 2600mAh Batteries, PD Fast Charge
Product Specifications:
Zhiyun Crane 4 Specs
| Grip Design | Single Handgrip |
Gimbal
| Load Capacity | 13.2 lb / 6 kg |
| Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
| Rotation Range | Mechanical Range Pitch (Tilt): 214° (-72 to 142°) Roll: 322° (-251 to 71°) Yaw (Pan): 360° Controllable Range Pitch (Tilt): 207° (-71 to 136°) Roll: 70° (-35 to 35°) Yaw (Pan): 360° Unlimited |
Compatibility
| Camera Control | On Compatible Models (See Full Compatibility List) |
| Camera Mounting Screw | 3 x 1/4"-20 Male |
Connectivity
| Inputs/Outputs | 1 x USB-C (Power / Firmware Updates) 1 x USB-C (Control / Video) 2 x USB-C (Control) |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.0 |
| Mobile App Compatible | Yes: Android & iOS App Name: ZY Play Functionality: Adjust Settings, Firmware Update, Remote Control, Setup *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Battery
| Battery Type | 4 x 18650 |
| Battery Capacity | 2600 mAh |
| Battery Runtime | 12 Hours |
| Battery Charging Time | 1.5 Hours |
Power
| Operating Voltage | 11.0 to 16.8 VDC |
| Operating Current | 200 to 14500 mA |
Environmental
| Operating Temperature | 14 to 77°F / -10 to 25°C |
General
| Display Type | Fixed Touchscreen LCD |
| Mounting | 4 x 1/4"-20 Female |
| Dimensions | 13.4 x 11 x 2.8" / 340 x 280 x 70 mm |
| Weight | 3.68 lb / 1.67 kg (without Tripod) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Zhiyun CRANE 4 takes the familiar form factor and lightweight experience of previous Zhiyun gimbals while expanding the onboard features for native portrait shooting, Bluetooth shutter control, and an extended grip to accommodate cameras with full-frame lenses. Control the 360° pan, 207° tilt, and 70° roll rotation using the onboard controls. Balance indicator lights on each motor aid in achieving precise calibration. Dual-layer quick release plates facilitate both landscape and portrait-oriented shooting with ease. Easily control your settings with the 1.22" color touchscreen and Bluetooth-powered wireless shutter. The CRANE 4 also features a built-in fill light with a 3200 lux output and adjustable color temperature.
In the Box:
- Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit
- Mini Tripod
- Lower Quick Release Plate
- Upper Quick Release Plate
- Camera Quick Release Plate
- Lens Support with Screw
- Sling Grip
- Wrist Rest
- USB-C to Sony Multi Control Cable
- USB-C to Mini-USB Canon Control Cable
- USB-C to Micro-USB Canon Control Cable
- USB-C to USB-C Panasonic Control Cable
- USB-C Charging Cable
- Fill Light Diffuser
- 3 x 1/4"-20 Screw
- 3/8"-16 Screw
- Allen Key
- Carrying Case
Key Features:
- 13.2 lb Load Capacity
- Extended Arm for Full-Frame Lenses
- Dual-Layer Quick Release Plates
- 360° Pan, 207° Tilt, 70° Roll Rotation
- Bluetooth 5.0 Shutter Control
- Built-In 3200 Lux Fill Light
- Adjustable Color Temperature
- Creative Operation Modes, 12-Hr Runtime
- 1.22" Touchscreen, Balance Indicators
- 2600mAh Batteries, PD Fast Charge
Product Specifications:
Zhiyun Crane 4 Specs
| Grip Design | Single Handgrip |
Gimbal
| Load Capacity | 13.2 lb / 6 kg |
| Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
| Rotation Range | Mechanical Range Pitch (Tilt): 214° (-72 to 142°) Roll: 322° (-251 to 71°) Yaw (Pan): 360° Controllable Range Pitch (Tilt): 207° (-71 to 136°) Roll: 70° (-35 to 35°) Yaw (Pan): 360° Unlimited |
Compatibility
| Camera Control | On Compatible Models (See Full Compatibility List) |
| Camera Mounting Screw | 3 x 1/4"-20 Male |
Connectivity
| Inputs/Outputs | 1 x USB-C (Power / Firmware Updates) 1 x USB-C (Control / Video) 2 x USB-C (Control) |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.0 |
| Mobile App Compatible | Yes: Android & iOS App Name: ZY Play Functionality: Adjust Settings, Firmware Update, Remote Control, Setup *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Battery
| Battery Type | 4 x 18650 |
| Battery Capacity | 2600 mAh |
| Battery Runtime | 12 Hours |
| Battery Charging Time | 1.5 Hours |
Power
| Operating Voltage | 11.0 to 16.8 VDC |
| Operating Current | 200 to 14500 mA |
Environmental
| Operating Temperature | 14 to 77°F / -10 to 25°C |
General
| Display Type | Fixed Touchscreen LCD |
| Mounting | 4 x 1/4"-20 Female |
| Dimensions | 13.4 x 11 x 2.8" / 340 x 280 x 70 mm |
| Weight | 3.68 lb / 1.67 kg (without Tripod) |
